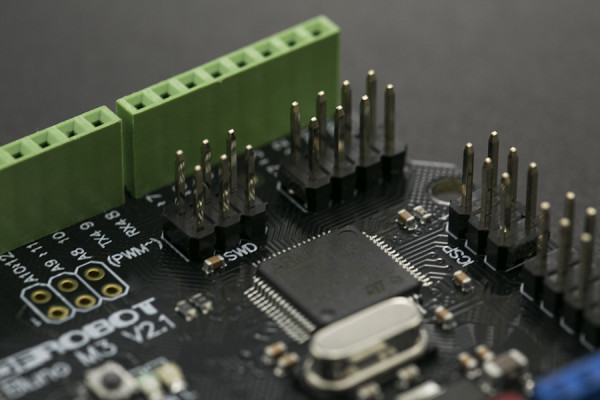

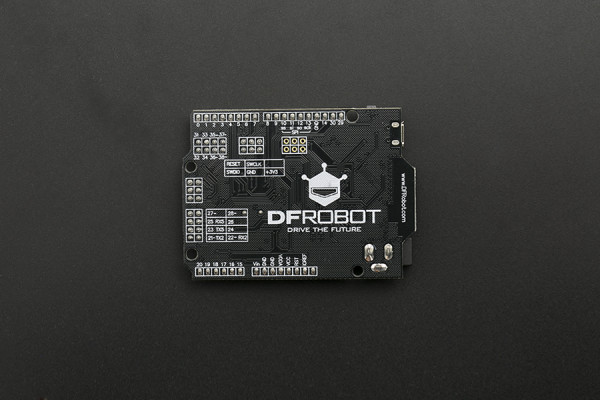

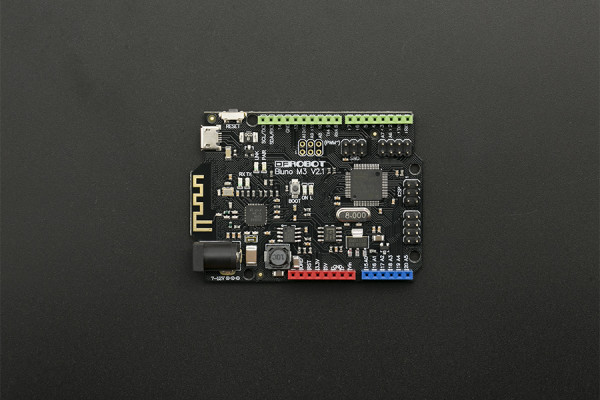

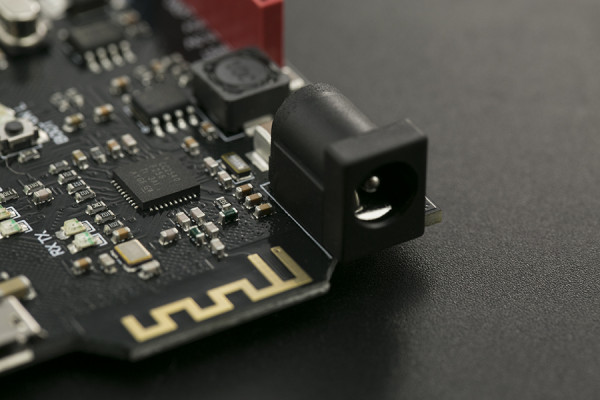

Bluno M3 - a STM32 ARM with bluetooth 4.0 (arduino compatible)

₹2,959.00 *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • DFR-0329
  • DFR0329
INTRODUCTION The Bluno M3 is a new Arduino compatible prototyping platform based on a 32-bit... more
Product information "Bluno M3 - a STM32 ARM with bluetooth 4.0 (arduino compatible)"

INTRODUCTION

The Bluno M3 is a new Arduino compatible prototyping platform based on a 32-bit ARM processor. This microcontroller integrates a Bluetooth 4.0 chip and a STM32 ARM controller on the board. As a member of Bluno family, Bluno M3 inherits most common Bluno features, such as bluetooth connectivity, Bluetooth wireless programming and mobile phone controlling. In addition, thanks to its new 32-bit microcontroller, Bluno M3 has a much more powerful performance, more storage space and more interface resources.

The ARM processor is famous for its efficient processing performance, but one of the downsides to this is that its developing environment is also quite complicated. BUt the engineers at DFRobot has been trying very hard to solve this: the rewritten underlying protocol and development environment have been rewritten to accommodate for Arduino language usage, giving it full Arduino compatibility. Bluno M3 has 512K flash memory and 64K SRAM, and the integrated Bluetooth 4.0 (BLE) supports Bluetooth wireless control or Bluetooth wireless programming.

Note: The special IDE for M3 only supports Windows currently.

Size Comparison. Left: Arduino Uno Right: Bluno M3

I/O Expansion Shield for Bluno M3

Related Blogs:-

Monthly Free Trial - Bluno M3+ IO Expansion Shield ($44.85 Value)

Monthly Free Trial - Bluno M3+ IO Expansion Shield ($44.85 Value)

Features:-

  • Supports Bluetooth Wireless Programming
  • Supports Bluetooth HID
  • Supports AT commands to configure BLE
  • Supports firmware upgrades
  • Supports mobile control
  • Supports firmware updates
  • Compatible with Arduino Uno pin mappings
  • Supports Android and IOS applications, open source code, suitable for secondary development by the user

Specifications:-

  • Microcontroller: STM32 F103RET6
  • Clock Speed: 72MHz
  • Bluetooth chip: TI CC2540 (Bluetooth 4.0)
  • Communication Range: 30m(1181")
  • Operating Voltage: 3.3V
  • DC Supply: USB Powered or External 7V~12V DC
  • Digital I/O Pins: 39
  • Analog Input Pins: 11 (Multiplex)
  • External Interrupt: 39 (D0~D38)
  • I2C/IWC: 30 (Default SDA), 29 (Default SCL)
  • SRAM: 64K
  • Flash: 512K (Customizable Flash assignment, refer to Flash chapter for more info)
    • Default User Code repository: 492K
    • Default User Data repository: 20K
  • SPI: SPI,SPI1
    • SPI 12(MISO), 11(MOSI), 13(SCK)
    • SPI1 33(MISO), 34(MOSI), 32(SCK)
  • Serial Port: 5 (Serial1/Serial2/Serial3/Serial4/Serial5)
    • Serial1 0(Rx1) & 1(Tx1)
    • Serial2 22(Rx2) & 21(Tx2)
    • Serial3 30(Rx3) & 29(Tx3)
    • Serial4 8(Rx4) & 9(Tx4)
    • Serial5 54(Rx5) & 53(Tx5)
  • Dimensions: 68mm x 31mm(2.68"x1.22")

Shipping List:-

  • Bluno M3 Microcontroller x1
